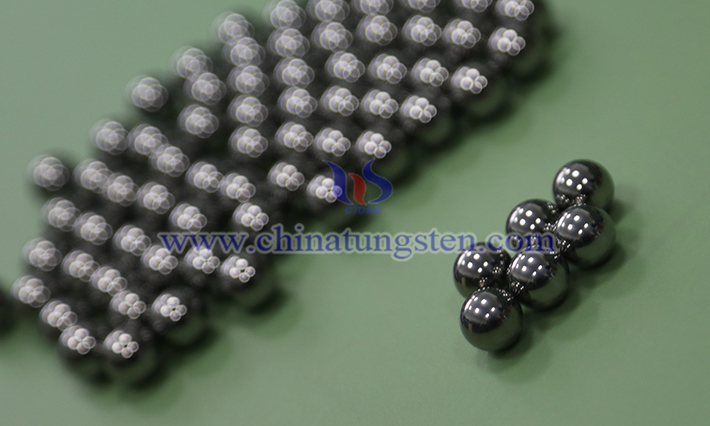

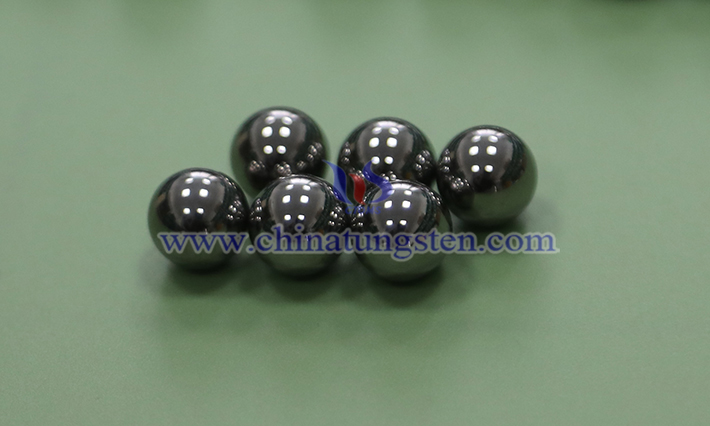

Tungsten cemented carbide balls (typically made with a metal binder such as tungsten carbide and cobalt) are widely used in high-precision, demanding applications due to their exceptional hardness, wear resistance, corrosion resistance, and stability. Their dimensional accuracy is one of the core criteria for measuring their quality.
I. Key Indicators of Dimensional Accuracy
Dimensional accuracy is not limited to diameter alone; it generally encompasses the following interrelated aspects:
1. Diameter Tolerance
This is the most basic accuracy indicator, representing the maximum allowable deviation between the measured diameter and the nominal diameter of the ball.
Expression: Typically expressed in ± microns (μm). For example, the diameter tolerance for a G10 ball is ±0.25 μm.
The smaller the tolerance, the higher the accuracy grade.
2. Sphericity (Roundness)
This refers to the maximum deviation of the ball's surface from a perfect sphere. This measure measures the roundness of the balls.
This is a more stringent metric than diameter tolerance. A ball may have a perfectly acceptable average diameter, but if it's not round enough, it can cause vibration and eccentric wear under high-speed rotation or high loads.
Expression: Also expressed in microns (μm). The spherical error value is always less than or equal to the diameter tolerance value.
3. Lot Diameter Variation
This refers to the maximum diameter difference between any two tungsten cemented carbide balls produced in the same batch.
This metric is crucial for applications where paired balls are used, such as precision bearings. Even if each individual ball meets tolerance, inconsistent sizes within a batch will result in poor performance after assembly.
4. Surface Roughness
Although not a dimension, surface finish directly affects the friction, wear, and fatigue life of the ball, working in tandem with dimensional accuracy to achieve optimal performance.
Expression: Typically expressed as Ra (arithmetic mean deviation) or Rz (maximum height), in nanometers (nm) or micrometers (μm). The surface of precision-grade tungsten cemented carbide balls can achieve a mirror-like finish.
II. Precision Grade Standards
The most universally recognized and authoritative international standard is ISO 3290 (Rolling Bearings—Rolling Elements—Balls). This standard classifies steel and tungsten cemented carbide balls into several precision grades based on diameter tolerance and batch-to-batch diameter variation. These grades are designated "G" followed by a number, with lower numbers representing higher precision grades.
For example, G10 means both diameter tolerance and batch-to-batch variation do not exceed 0.25 microns. G5 has even tighter requirements, with a tolerance of ±0.13 microns. G3, on the other hand, is considered ultra-high precision, with a tolerance within ±0.08 microns, and is typically used in the most cutting-edge applications. For an extremely hard material like carbide, achieving G5 is considered a sign of exceptional craftsmanship, while G3 represents the pinnacle of manufacturing excellence.
In addition to ISO standards, some manufacturers have their own in-house standards or customize higher precision grades (such as G2 or even higher) to meet customer requirements.
III. Factors Affecting Dimensional Accuracy
1. Raw Material Quality: Purity, particle size, and uniformity of cobalt distribution in tungsten carbide powder.
2. Molding Process: Density uniformity of the pressed blank directly affects shrinkage uniformity after sintering.
3. Sintering Process: Control of temperature, time, and atmosphere is crucial. Unstable sintering can lead to deformation and dimensional unevenness.
4. Grinding and Polishing: This is the core step in achieving high precision. High-precision grinding machines, strict process parameters (pressure, speed, time), and high-quality grinding paste are crucial.
5. Inspection and Screening: 100% sorting is performed using ultra-high-precision pneumatic measuring instruments, optical measuring instruments, or laser measuring instruments to ensure that every ball meets grade requirements.
IV. Main Applications and Corresponding Precision Requirements
1. Precision bearings (machine tool spindles, aerospace engines): The highest requirements, typically requiring G5 or higher, with extremely low spherical error and batch variation being key. 2. Industrial valves (ball valve cores): Typically require G10-G20 grades, with excellent roundness and wear resistance to ensure a tight seal.
3. Metrology and testing: For standard balls or probes, G3-G10 grades are required, offering extremely stable dimensions.
4. Consumer products (high-end bicycle pedals, fishing reels, etc.): Typically G16-G28 grades are used.
5. Wear-resistant applications (abrasive media, nozzles): Requirement for dimensional accuracy is relatively low, with greater emphasis on wear resistance and toughness.
