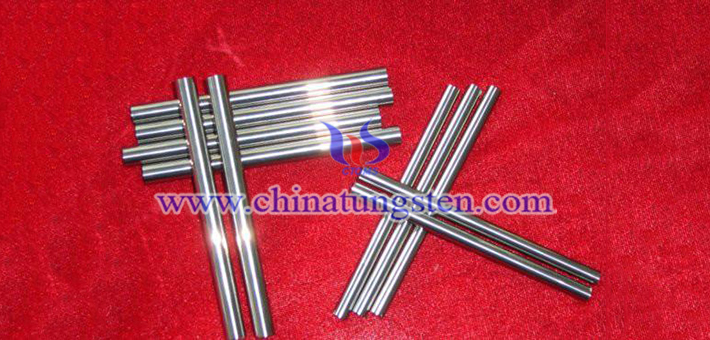

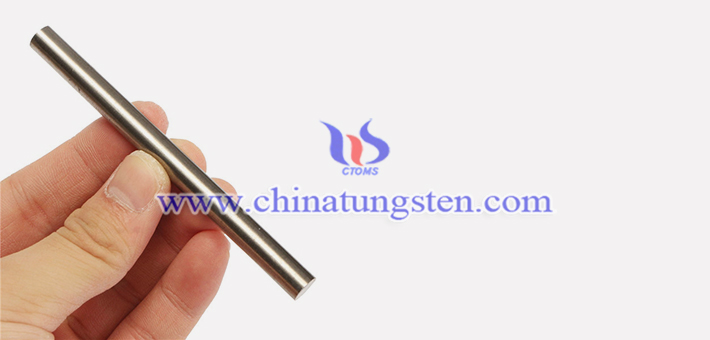

HPM1760H tungsten alloy rod has high density, high modulus of elasticity and high absorption capacity against χ-rays and γ-rays. Its ingredient is 95% tungsten、5% nickel and copper. It also has good machinability and good mechanical properties. Chinatungsten Online can offer a growing range of HPM1760H tungsten alloy rod that can be cut to size to customer specified thickness, length, surface finish.
The properties of HPM1760H tungsten alloy rod are:
Matrix: 92.5% W
Binder: 7.5% Ni-Fe
Density: 17.6g/cm3 and 0.636lb/in3
Thermal Conductivity: 80 W/(m?K)
Coefficient of Thermal Expansion 20~100℃：5.5μm/(m?K)
Coefficient of Thermal Expansion 20~300℃：5.8μm/(m?K)
Coefficient of Thermal Expansion 20~4500℃：5.9μm/(m?K)
Electrical Conductivity: 12% IACS
Electrical Resist：0.14~0.16μΩ?m
Yield Strength (0.2% offset): 81.2~97.2KSI
Tensile Strength: 107~119 KSI
Elongation: 1~2%
Hardness：405~430HV10
Modulus of Elasticity：380~440GPa
Magnetic Properties: Slightly Magnetic
More details, please visit:
http://www.tungsten-alloy.com/tungsten-alloy-rod.html
